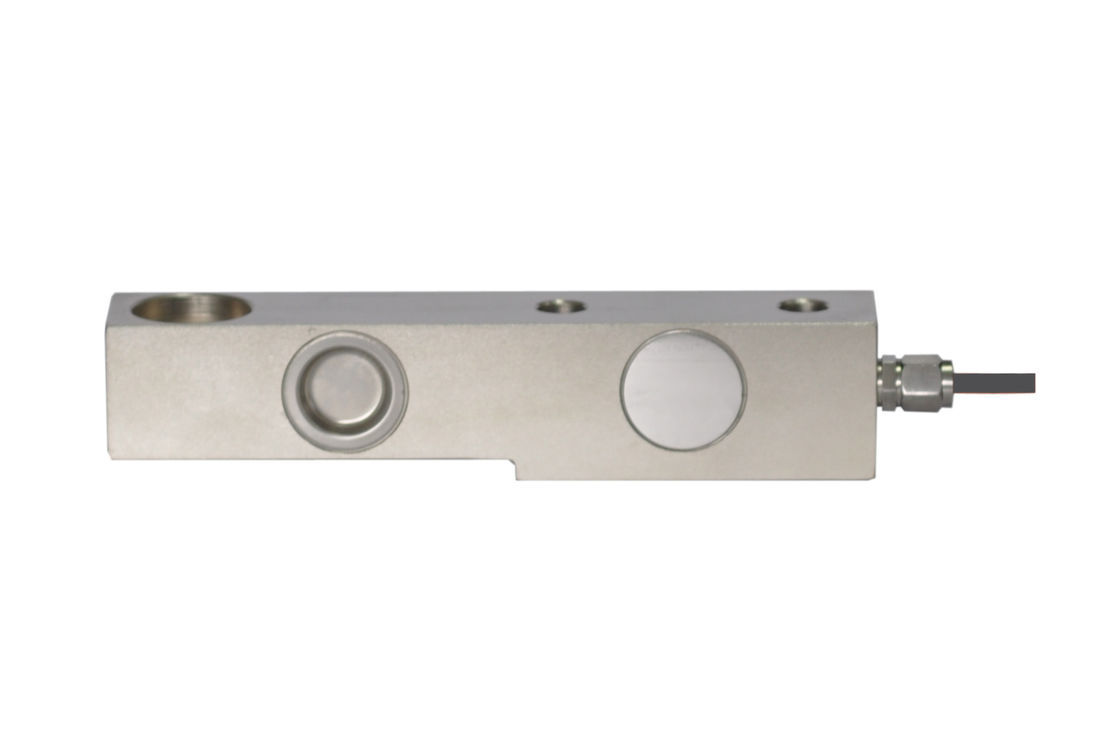

Features
Specification
| Maximum capacity (Emax) | t | 0.5, 1, 2, 3 | 5, 7.5, 10, 15, 20, 25 |
| Rated output (Cn) | mV/V | 2.0±0.002 | |
| Accuracy | ±%FS | 0.05 | OIML C3 |
| Max. number of intervals (nLC) | - | 3000 | |
| Creep (30 minutes) | ±%FS | 0.0166 | |
| Zero balance | ±%FS | 1 | |
| Temperature effect on zero balance (TCO) | ±FS/10°C | 0.02 | |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 | |
| Safe overload | %FS | 150 | |
| Ultimate overload | %FS | 250 | |
| Nominal temperature range | °C | -10 ... + 40 | |
| Operating temperature range | °C | - 30 ... + 70 | |
| Input impedance | Ω | 400 ± 10 | |
| Output impedance | Ω | 352 ± 3 | |
| Insulation impedance | MΩ | ≥ 5000 | |
| Recommended excitation | V DC/AC | 10 - 12 | |
| Excitation maximum | V DC/AC | 15 | |
| Material | - | Stainless steel | |
| Protection class | - | IP68 | |
| Cable | - | Length: 6m for 5-10t; | |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension
Dimension unit: mm
| Capacity (t) | L | L1 | L2 | L3 | L4 | H1 | H2 | H3 | H4 | B | B1 | D1 | D2 | D3 |
| 0.5, 1, 2, 3 | 203 | 95 | 64 | 98 | 22 | 43 | 36.6 | 30.5 | 8 | 36.6 | 7 | Φ32 | Φ16 | Φ13 |
| 5, 7.5 | 235 | 110 | 66 | 124 | 22 | 52 | 48 | 30 | 12 | 48 | 7 | Φ38 | Φ22 | Φ21 |
| 10 | 279 | 133 | 82 | 140 | 32 | 67 | 60 | 20 | 8.5 | 60 | 8.5 | Φ48 | Φ32 | Φ28 |
| 15, 20, 25 | 318 | 153 | 89 | 159 | 38 | 82.5 | 70 | 24 | 9.5 | 70 | 9.5 | Φ54 | Φ38 | Φ34 |
