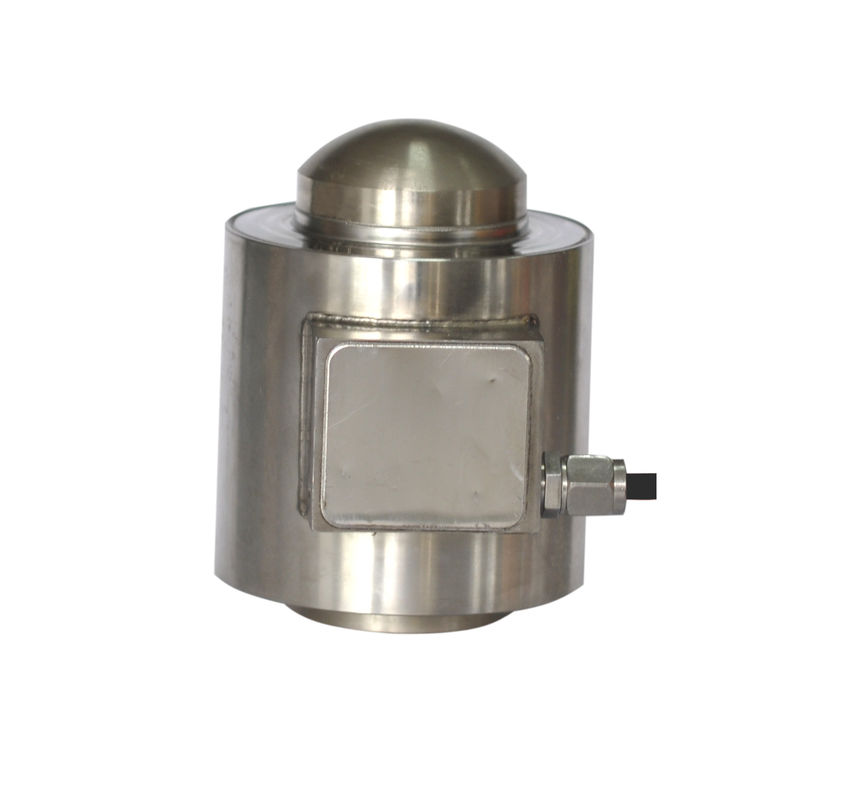

Features
Specification
| Maximum capacity (Emax) | t | 20 , 25, 30, 50, 60, 75, 100 |
| Rated output (Cn) | mV/V | 1,0 ± 0,002 |
| Accuracy | - | OIML C3 |
| Max. number of intervals (nLC) | - | 3000 |
| Creep (30 minutes) | ±%FS | 0.0166 |
| Zero balance | ±%FS | 1 |
| Temperature effect on zero balance (TCO) | ±%FS/10°C | 0.02 |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 |
| Safe overload | %FS | 200 |
| Ultimate overload | %FS | 400 |
| Nominal temperature range | °C | -10 ... + 40 |
| Operating temperature range | °C | - 30 ... + 70 |
| Input impedance | Ω | 650 ± 10 |
| Output impedance | Ω | 610 ± 3 |
| Insulation impedance | MΩ | ≥ 5000 |
| Recommended excitation | V DC/AC | 10 -12 |
| Excitation maximum | V DC/AC | 15 |
| Material | - | Alloy steel |
| Protection class | - | IP68 |
| Cable | - |
Length: 14m or customize special length to order; Diameter: Φ 6mm |
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension
Dimension unit: mm
| Capacity (t) | D1 | D2 | D3 | D4 | D5 | D6 | H1 | H2 | H3 | L1 |
| 20, 25, 30, 50, 60 | 54 | 70 | 35 | 220 | 54 | 87 | 112 | 138.5 | 17 | 105 |
| 75, 100 | 76 | 105 | 50 | 300 | 76 | 120 | 167 | 200 | 37 | 137 |
