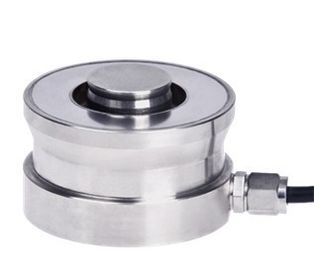

Features
Specification
| Maximum capacity (Emax) | t | 10, 15, 22, 33, 47, 68, 100, 150 | 220,330 |
| Rated output (Cn) | mV/V | 2.85 ± 0.015 | |
| Accuracy | ±%FS | 0.1 | 0.2 |
| Max. number of intervals (nLC) | - | 3000 | |
| Creep (30 minutes) | ±%FS | 0.02 | |
| Zero balance | ±%FS | 1 | |
| Temperature effect on zero balance (TCO) | ±%FS/10°C | 0.02 | |
| Temperature effect on sensitivity (TC Span) | ±%FS/10°C | 0.02 | |
| Safe overload | %FS | 150 | |
| Ultimate overload | %FS | 200 | |
| Nominal temperature range | °C | -10 ... + 40 | |
| Operating temperature range | °C | - 30 ... + 70 | |
| Input impedance | Ω | 1450 ± 10 | |
| Output impedance | Ω | 1402 ± 5 | |
| Insulation impedance | MΩ | ≥ 5000 | |
| Recommended excitation | V DC/AC | 10 -12 | |
| Excitation maximum | V DC/AC | 15 | |
| Material | - | Alloy steel | |
| Protection class | - | IP68 | |
| Cable | - |
Length: 12m for 10-33t; 16m for 47-330t; or customize special length to order; Diameter: Φ 6mm |
|
Wiring
The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.
Dimension
Dimension unit: mm
| Capacity (t) | A | B | C | H | J | K |
| 10, 15, 22 | Ф75 | Ф30 | Ф75 | 50 | 7 | 6.5 |
| 33 | Ф95 | Ф40 | Ф95 | 65 | 7 | 10 |
| 47 | Ф130 | Ф60 | Ф130 | 75 | 7 | 14 |
| 68 | Ф130 | Ф60 | Ф130 | 85 | 7 | 14 |
| 100 | Ф150 | Ф70 | Ф150 | 90 | 7 | 16 |
| 150 | Ф150 | Ф70 | Ф150 | 100 | 7 | 16 |
| 220 | Ф225 | Ф100 | Ф225 | 130 | 10 | 24 |
| 330 | Ф225 | Ф100 | Ф225 | 145 | 10 | 24 |
Accessories
Accessory model: type b mounting
Notes:
The mounting is optional in your order, if you need it, please list out in your inquiry and order.
Dimension unit: mm
| Capacity (t) | A | B | C | D | E | F | G | H | K |
| 10, 15, 22 | Ф45 | Ф55 | Ф80 | Ф100 | Ф75 | 20 | 10 | 95 | Ф11.5 |
| 33 | Ф58 | Ф68 | Ф95 | Ф120 | Ф95 | 25 | 12 | 120 | Ф13 |
| 47 | Ф80 | Ф92 | Ф130 | Ф170 | Ф130 | 30 | 20 | 140 | Ф11.5 |
| 68 | Ф80 | Ф92 | Ф130 | Ф170 | Ф130 | 30 | 20 | 150 | Ф11.5 |
| 100 | Ф100 | Ф110 | Ф150 | Ф200 | Ф150 | 40 | 22 | 177 | Ф25 |
| 150 | Ф100 | Ф110 | Ф150 | Ф200 | Ф150 | 40 | 22 | 187 | Ф25 |
| 220 | Ф160 | Ф170 | Ф250 | Ф320 | Ф225 | 40 | 30 | 235 | Ф25 |
| 330 | Ф160 | Ф170 | Ф250 | Ф320 | Ф225 | 40 | 30 | 250 | Ф25 |
