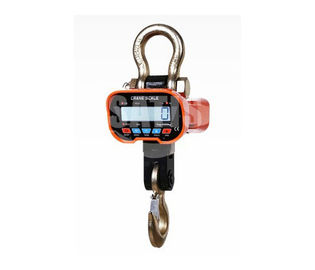

Model: OCS-A general type crane scale
Features
Optional colors
Dimensions
| Max.Cap (t) |
A mm |
B mm |
C mm |
L mm |
N.W (kg) |
| 1t | 58 | 83 | 30 | 420 | 12kg |
| 2t | 58 | 83 | 30 | 420 | 13kg |
| 3t | 73 | 107 | 33 | 480 | 15kg |
| 5t | 92 | 135 | 45 | 585 | 24kg |
| 10t | 94 | 147 | 60 | 770 | 43kg |
| 15t | 128 | 178 | 75 | 860 | 61kg |
| 20t | 135 | 250 | 75 | 950 | 64kg |
Functions
| Zero | Overload Alarm/ Record |
| Tare | Digital Calibration |
| Hold | 3-point Linearity Correction |
| Resolution switch | Unit Switch |
| Battery Supervision | Gravity Acceleration Set |
Specifications
| Accuracy class | OIML III |
| Tare range | 100%F.S. |
| Zero range | 4%F.S. |
| Safe overload | 120%F.S. |
| Ultimate overload | 400%F.S. |
| Overload alarm | 100%F.S.+9e |
| Battery | 6V/10Ah |
| Adaptor | DC9V |
| Battery life | >100h |
| Temperature range | -10℃~40℃ |
Standard accessories
Optional accessories
