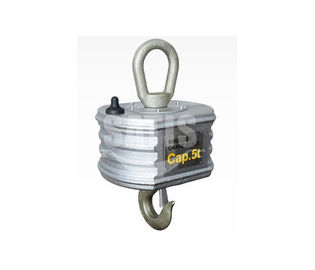

OCS-F1 1t to 5t wireless type crane scale

: Large Image : OCS-F1 1t to 5t wireless type crane scale

Product Details:

Place of Origin:	CHINA
Brand Name:	SATIS
Certification:	CE
Model Number:	OCS-F1

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD800
Packaging Details:	netural carton
Delivery Time:	30 days
Payment Terms:	T/T
Supply Ability:	30000pcs per month

Contact Now

Detailed Product Description

Model: OCS-F1 wireless type crane scale

Features

High-strength load receptor
Cast-steel case
American standard fixed shackle
American standard eye hook
2* rechargeable batteries
Capacity:1t~5t

Dimensions

OCS-F1 1t to 5t wireless type crane scale

Max.Cap (t)	A mm	B mm	C mm	L mm	N.W (kg)
1t	70	100	35	420	22kg
2t	70	100	35	420	22kg
3t	70	100	35	420	22kg
5t	85	115	40	480	26kg

Functions

Zero	Overload Alarm
Tare	Digital Calibration
Tare/Set	Selectable print format
Resolution switch	Date/Time
Battery Supervision	Acc/Del/View

Specifications

Accuracy class	OIML III
Tare range	100%F.S.
Zero range	4%F.S.
Safe overload	120%F.S.
Ultimate overload	400%F.S.
Overload alarm	100%F.S.+9e
Battery	6V/3.2Ah*2
Adaptor	DC9V
Radio frequency	450MHz
Radio distance	>100m
Temperature range	-10℃~40℃

Indicator Features

Aluminium die-casting case
ABS portable toolbox
LCD display
Rechargeable battery
Mini printer
RS232 RS485 output interface
Dimension: 285*195*63

Standard accessories

OCS-F1 1t to 5t wireless type crane scale

Optional accessories
