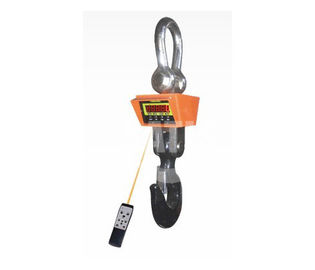

Model: OCS-Z heavy-duty type crane scale
Features
Dimensions
| Max.Cap (t) |
A mm |
B mm |
C mm |
L mm |
N.W (kg) |
| 10t | 105 | 140 | 70 | 850 | 60kg |
| 15t | 140 | 160 | 75 | 900 | 80kg |
| 20t | 150 | 180 | 80 | 950 | 95kg |
| 30t | 165 | 215 | 90 | 1120 | 165kg |
| 50t | 180 | 235 | 105 | 1350 | 395kg |
Functions
| Zero | Overload Alarm/ Record |
| Tare | Digital Calibration |
| Hold | 3-point Linearity Correction |
| Resolution switch | Unit Switch |
| Battery Supervision | Gravity Acceleration Set |
Specifications
| Accuracy class | OIML III |
| Tare range | 100%F.S. |
| Zero range | 4%F.S. |
| Safe overload | 120%F.S. |
| Ultimate overload | 400%F.S. |
| Overload alarm | 100%F.S.+9e |
| Battery | 6V/10Ah |
| Adaptor | DC9V |
| Battery life | >80h |
| Temperature range | -10℃~40℃ |
Standard accessories
Optional accessories
