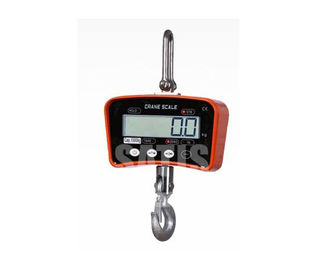

Model: OCS-M portable type crane scale
Features
Optional colors
Dimensions
| Max.Cap (kg) |
A mm |
B mm |
C mm |
L mm |
N.W (kg) |
| 100kg | 20 | 80 | 24 | 350 | 4.1kg |
| 200kg | 20 | 80 | 24 | 350 | 4.1kg |
| 300kg | 20 | 80 | 24 | 350 | 4.1kg |
| 500kg | 25 | 85 | 36 | 370 | 4.3kg |
| 1000kg | 25 | 85 | 36 | 370 | 4.3kg |
Functions
| Zero | Overload Alarm/ Record |
| Tare | Digital Calibration |
| Hold | 3-point Linearity Correction |
| Resolution switch | Unit Switch |
| Battery Supervision | Gravity Acceleration Set |
Specifications
| Accuracy class | OIML III |
| Tare range | 100%F.S. |
| Zero range | 4%F.S. |
| Safe overload | 120%F.S. |
| Ultimate overload | 400%F.S. |
| Overload alarm | 100%F.S.+9e |
| Battery | 6V/5Ah |
| Adaptor | DC9V |
| Battery life | >80h |
| Temperature range | -10℃~40℃ |
Standard accessories
